TG20 Thrust Stand for X6+ and X8 motors

Quick Overview

NABL Calibrated


Thrust Stand to Calculate


Thrust, Current, RPM, Watt and Voltage

₹120,000.00

Availability: In stock

Only 2 left

Details

TG20 - Thrust Analyzer designed specially for Hobbywing X6+ and X8 motors



Must have instrument for analyzing efficiency of brushless motor and propeller for drones and UAV. Maximum range and low power consumption is the key for long flights.

Made of High quality selected material for long life and precession.

Model Name: TG20

Make: Bharat Micro Jet

Data Sheet



Thrust

v Max thrust: 20Kg

v Accuracy:  Plus Minus 0.5%)

v Sampling Rate: 500ms

v Calibration done using NABL Weight

Voltage

v Max Voltage: 60V or 12S

v Accuracy: Plus-Minus 0.5%

v Sampling Rate: 500ms

v Calibration done using NABL certified Voltage meter (Fluke362)

Current

v Max current: 60A

v Accuracy: Plus-Minus 0.5%

v Sampling Rate: 500ms

v Calibrating done using NABL certified Current meter (Fluke362)

Temperature

v Max temperature: 80C

v Accuracy: Plus-Minus 1%

v Sampling Rate: 500ms

RPM

v Max RPM is 25,000

v Accuracy: Plus-Minus 1%

v Sampling Rate: 500ms

v Calibrated using NABL certified RPM meter.

v Operating environment: Indoor

Throttle

v Range: 1 to 100%

Maximum Thrust to be measured: 20Kg

Following are the output measured with this Thrust Stand

  1. Thrust
  2. Current
  3. Voltage
  4. RPM
  5. Watt
  6. Temprature
  7. Throttle Percentage

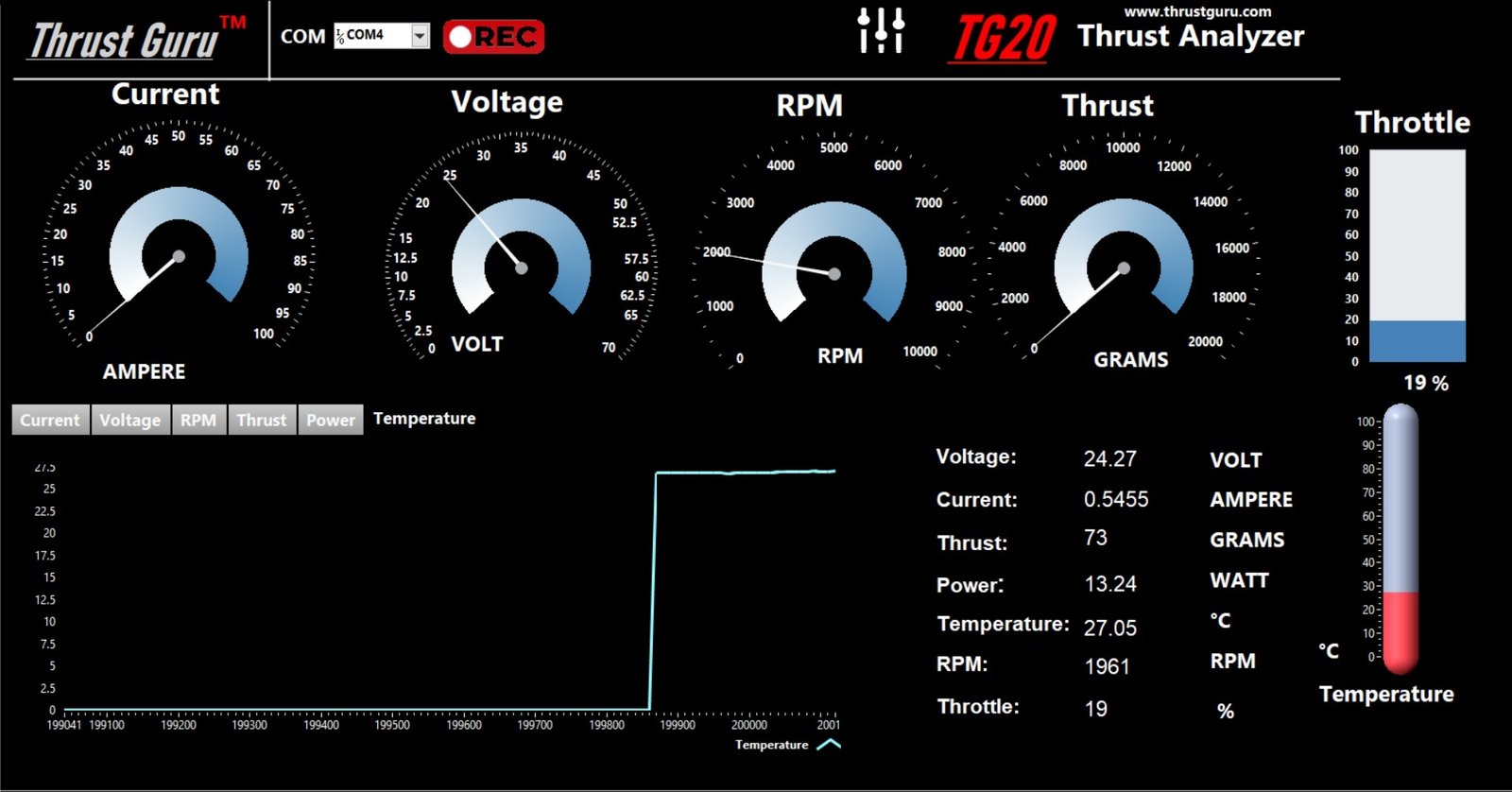

 Professionally designed software displays the values in a nice graphical guages. Easy to understand and work.

Values are saved and later can be used for reporting and analysis.

Software is designed in LabView by industry experts

Technical Specification of Thrust Stand TG20

  • Max Thrust measured: 20kg
  • Max Voltage measured 60Volts
  • Max Current measured 60Amps
  • Max RPM measured 15,000
  • Max Propeller used 30 inches



What is included?

  1. Thrust stand with sensors
  2. Sensor box
  3. USB cable from sensor box to System to display values
  4. Calibration Report

What is required?

  1. Brushless or Brushed motor
  2. Electronic Speed controller
  3. RC controller or Servo tester
  4. Battery of your choice
  5. Desktop or Laptop
  6. Install the small software (executible file)
  7. install the LabView Agent
