Mark4 10 Inch FPV Drone

Mark4 10 Inch frame for heavy lift fpv drones

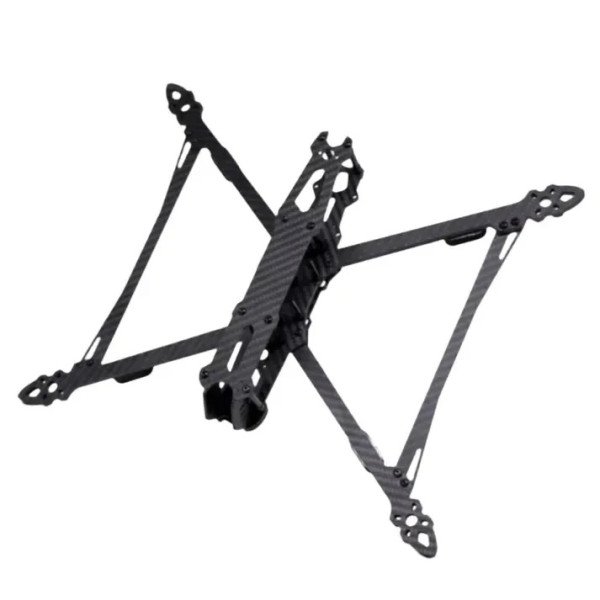

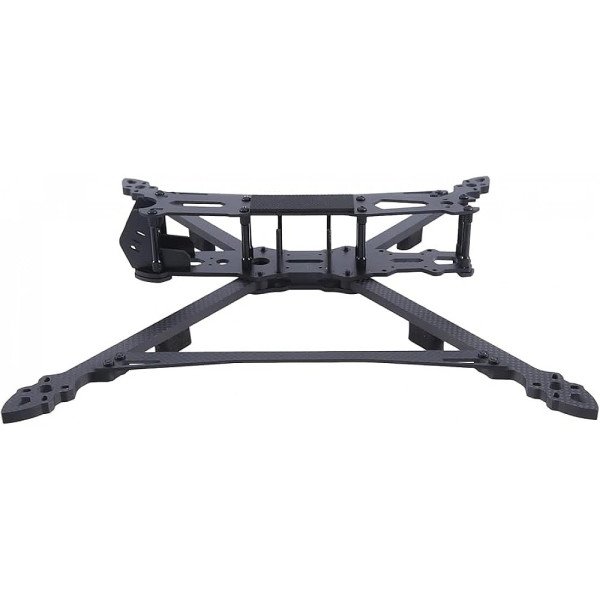

The Mark4 10" V2 is a robust carbon fiber frame engineered specifically for building large, long-range 10-inch drones. Featuring a 427 mm diagonal motor-to-motor distance and substantial 7.5 mm thick carbon arms, this frame offers exceptional strength and rigidity. The arms are interconnected to further enhance durability and reduce flex during flight.

The frame is optimized for Micro (19 mm) size cameras, which are securely mounted using protective carbon side plates to prevent damage. It supports stack mounting patterns of both 30.5×30.5 mm and 20×20 mm, offering flexibility when installing flight controllers and other electronics.

At the rear, the frame provides dedicated space for a video transmitter. It includes mounting holes with 30.5×30.5 mm and 20×20 mm spacing, allowing various VTX options. The motor mounts are compatible with both 16 mm and 19 mm M3 hole patterns, supporting a wide range of motor types. While originally designed for analog video transmission, experienced builders can also integrate digital systems without significant modifications.

Key Features

• High-Strength Carbon Fiber Construction: Lightweight yet highly durable, ideal for long-range FPV flights as well as general drone builds.

• Ease of Assembly: Arms are replaceable, simplifying repairs and maintenance — great for both new and advanced pilots.

• Distinctive Design: Modern and eye-catching frame aesthetics set it apart from typical drone frames on the market.

• Versatile Use: Suitable for users at all skill levels, striking a good balance between ruggedness and flight performance.

• Enhanced Stability: The thick 2.5 mm frame plate design improves flexibility and stability in flight, ensuring smoother performance.
