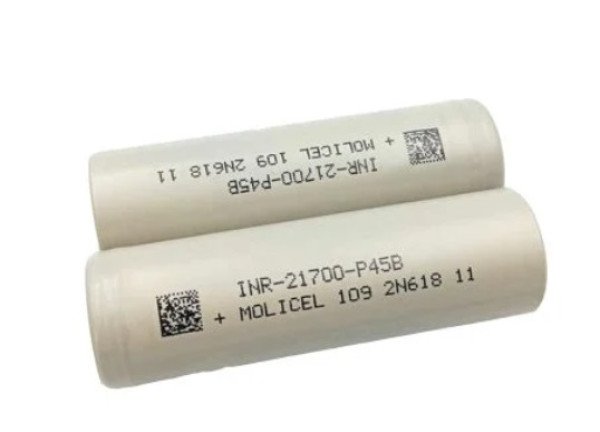

Molicel P45B - 45A Discharge Rate

Molicel P45B - 21700

High Capacity - High discharge
Latest generation newly launch lithium Ion ultra high power battery for high end applications.
Best battery / Cell for drone use. With 45A discharge rate now its possible to use high current drones application.
Suitable for agricultuer drones, UAV, fixed wing model planes etc..

You can now make batery packs based on your requirements. 1S,2S,3S,4s and 6S
For more capacity number of parellel cells can be used.
Example
6S2P means 6S and 9000mah.
6S6P means 6S and 27000mah.

Again two 6S in series gives 12S which is used by most agriculture drones.

Technical Specs of INR21700 -P45B

Nominal Voltage is 3.6V
Battery Capacity 4.5Ah
Discharge Rate of current 45A. This is the max.

Output Power is 184w and Energy density is 643 Wh/l
Number of Cycles is 500 Plus with 80% Retension rate.
You can charge with 13.5A Charger.
