QuadCopter 5kg Payload Made in India

5Kg Payload QuadCopter Using Hobbywing X6+ Motors

 Made in India.

 Weight of Frame 2.1Kg

Size of Frame diagnol: 1.34 meter

Height of Frame from Ground 57cm.

Central Plate Size: 240/240mm

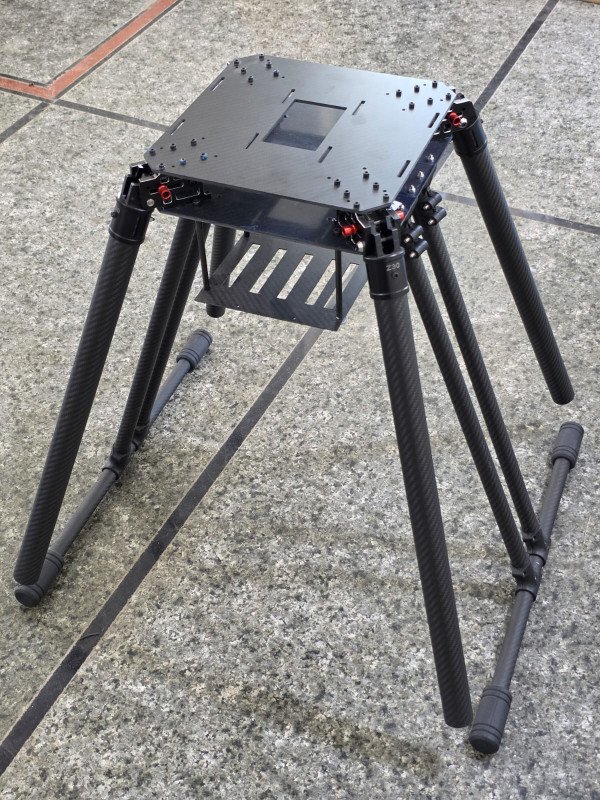

Carbon Fiber Quadcopter Frame with Foldable Arms

This image shows a robust carbon fiber quadcopter frame designed for heavy-duty UAV applications. The structure features a compact central body with four foldable arms, making it easy to transport while maintaining high structural rigidity during operation.

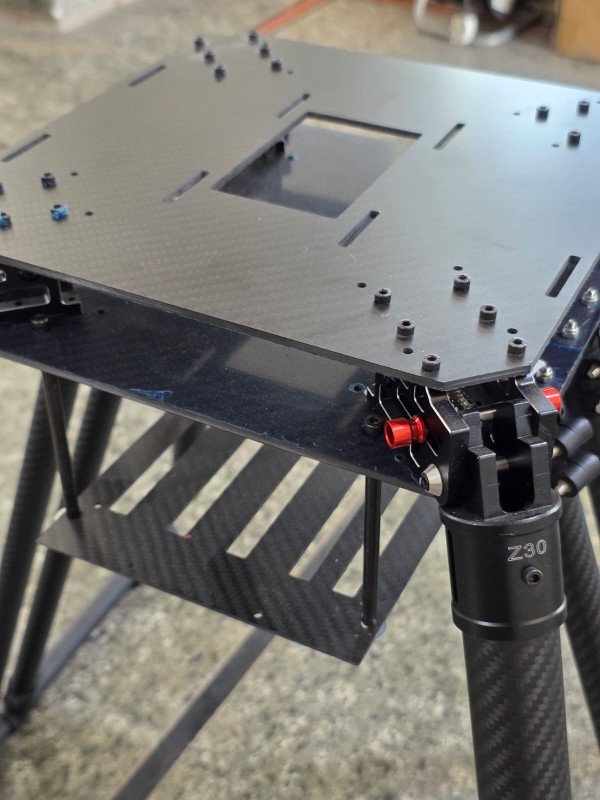

The main top plate is made from precision-cut carbon fiber, offering excellent strength-to-weight ratio. Multiple mounting holes on the plate allow flexible installation of flight controllers, GPS modules, and other avionics. A central cutout provides access for wiring or mounting electronics internally.

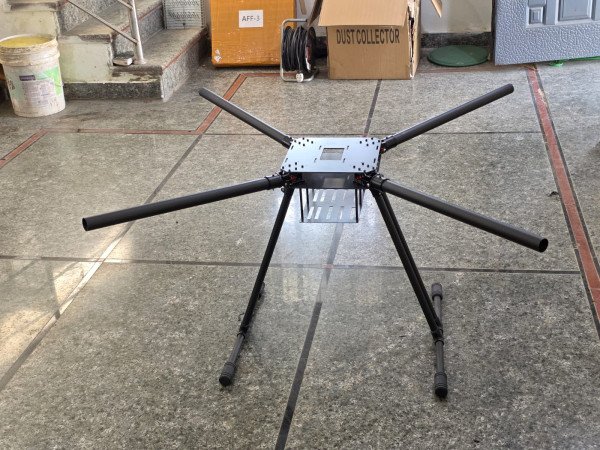

Each of the four arms is constructed from thick carbon fiber tubes, connected to the body through reinforced aluminum hinges. The foldable arm mechanism allows the arms to be quickly collapsed inward for storage or transportation, which is particularly useful for field operations and portable drone systems.

Under the main plate, a secondary mounting tray is installed, likely intended for batteries, power distribution boards, or payload electronics. The design provides good ventilation and cable routing space.

Key visible features include:

• Carbon fiber structural plates and arms for high durability and low weight

• Foldable arm hinges with locking mounts for quick deployment

• Wide stance landing legs integrated into the arms for stable ground support

• Expandable mounting points for flight electronics and accessories

Overall, the frame appears suitable for professional UAV builds such as aerial photography, mapping, surveillance, or heavy payload operations, where portability and structural strength are both critical.
